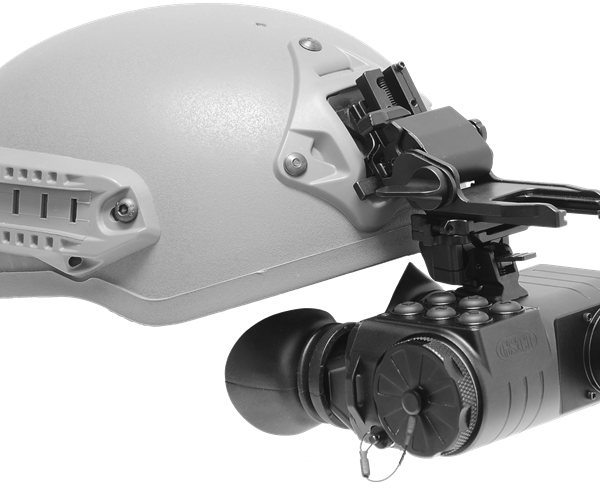

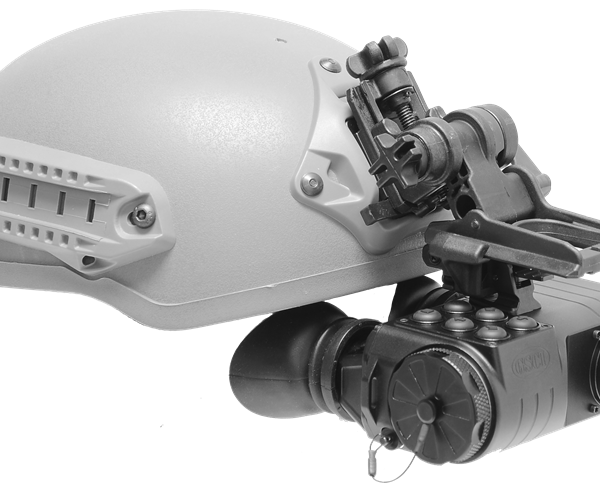

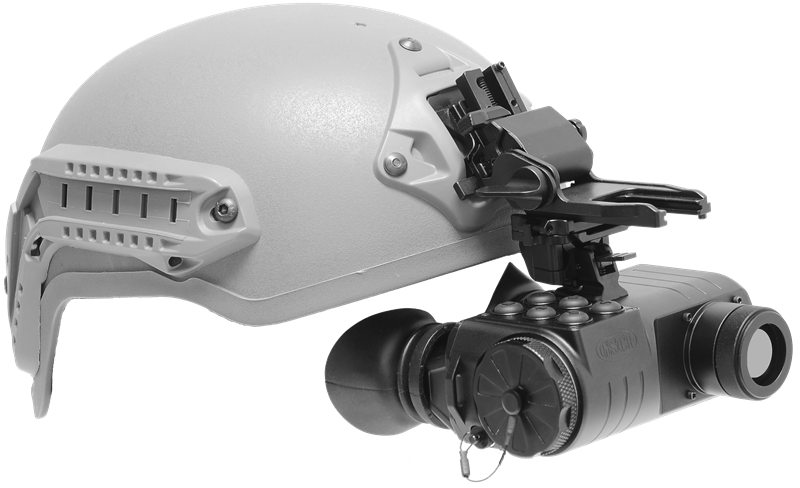

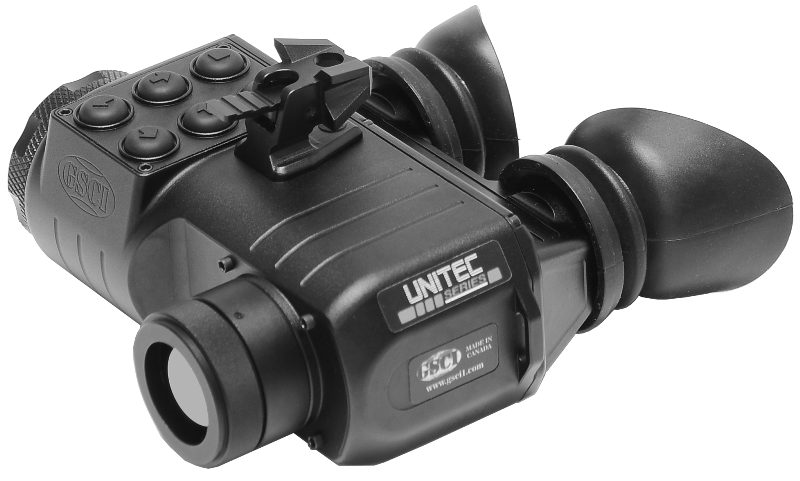

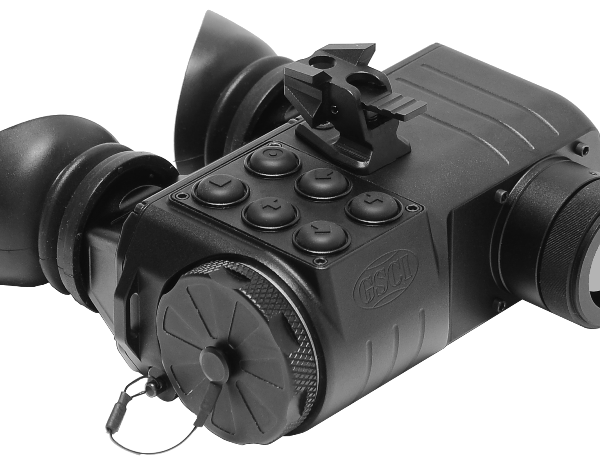

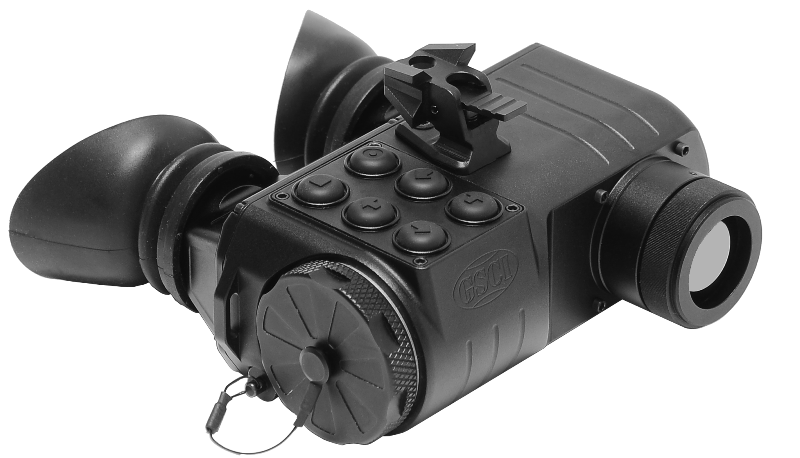

General Starlight UNITEC-G Lightweight Thermal Imaging Goggles


UNITEC-G Lightweight Thermal Imaging Goggles

Out of stock



UNITEC-G which stands for “Unique Technology”, is the thermal imaging goggle system designed for all categories of customers. It has a full-size ergonomic and tactile keypad, hard-anodized aluminum body, and superb optics. Its unbeatable real-life performance is complemented by best-in-class battery life. Features include fully waterproof design, precisely machined body and outstanding build quality. UNITEC-G is perfect for 24/7 observation and detection for any purpose (wildlife, perimeter security, outdoor activities).




High-Resolution Uncooled FPAs: 384×288 or 640×480

Fast Refresh Rate: 50Hz

Quality and “Fast” Low-F-Number Germanium Lenses

Optional Built-In Video Recorder

Stow Safety Feature (SSF)

Dual-AMOLED Display Design

Ultra-Low Power Consumption

Completely Silent System Operation

Precision-Machined Rugged Aluminum Body

Lowest Heat Dissipation

Video-out for External Display and Recording

Interchangeable Optics

High-Resolution AMOLED Displays 800×600

Stadiametric Rangefinder

24-hour Operation

Manual and Automatic FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Battery Pack Compatibility

Complete Dust– and Waterproof Protection

Optional Remote Control

7-Year Manufacturer’s Warranty

Made in Canada



Optical Magnification 1.5X (3X ) 1X (2X )
Objective Lens Focal Length 25mm  (50mm )
Objective Lens F-Number f/1.0
Field of View 14.9°x11.2° (7.5°x5.6° ) 24.5°x18.5° (12.4°x9.3° )
Focusing Range 0.25m .. Infinity (1m .. Infinity )
FPA Resolution and Pitch 384×288, 17µm 640×480, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent,

Auto-NUC (Uninterrupted Operation)

FPA Sensitivity <60mK
FPA Refresh Rate 50Hz
Digital Zoom 2X and 4X
Display Dual-AMOLED, Colour, 800×600
Imaging Modes 1 Monochrome + 8 Colour
Digital Video Recorder Optional: Built-In with microSD Card or External with SD Card
Max. Detection Human (1.7×0.5m) 830m (1,660m )
Max. Detection Vehicle (2.3×2.3m)  1,130m (2,250m )
Accepted Batteries 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc.
Battery Life Up to 8 hours
Environmental Protection IP66, IP67 or Better (Optional)
Dimensions 112x138x55mm
Weight 455 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide *
