General Starlight TIG-7-MOD-64 Elite Grade Tactical Thermal Imaging Goggles

$0.00

General Starlight TIG-7-MOD-64 Elite Grade Tactical Thermal Imaging Goggles

Email
Category:

Description

TIG-7-MOD-64 is a professional thermal imaging goggle system for hand-held and head-/helmet-mounted applications that require stereoscopic vision. Loaded with an array of useful features, TIG-7-MOD-64 has a user-friendly interface and ergonomic design. Powered by 4 easy-to-find AA batteries it can continuously operate for up to 8 hours.



Features:



High-Resolution Uncooled FPAs: 640×480

Shutterless FPA with Auto-NUC

Fast Refresh Rate: 50Hz

Quality and “Fast” Low-F-Number Germanium Lenses

Dual-Screen Design

Ultra-Low Power Consumption

Stow Safety Feature (SSF)

Precision-Machined Rugged Aluminum Body

Video-out for External Display and Recording

Interchangeable Optics

Built-In Video Recorder

High-Resolution AMOLED Displays 800×600

Auto-Off Feature

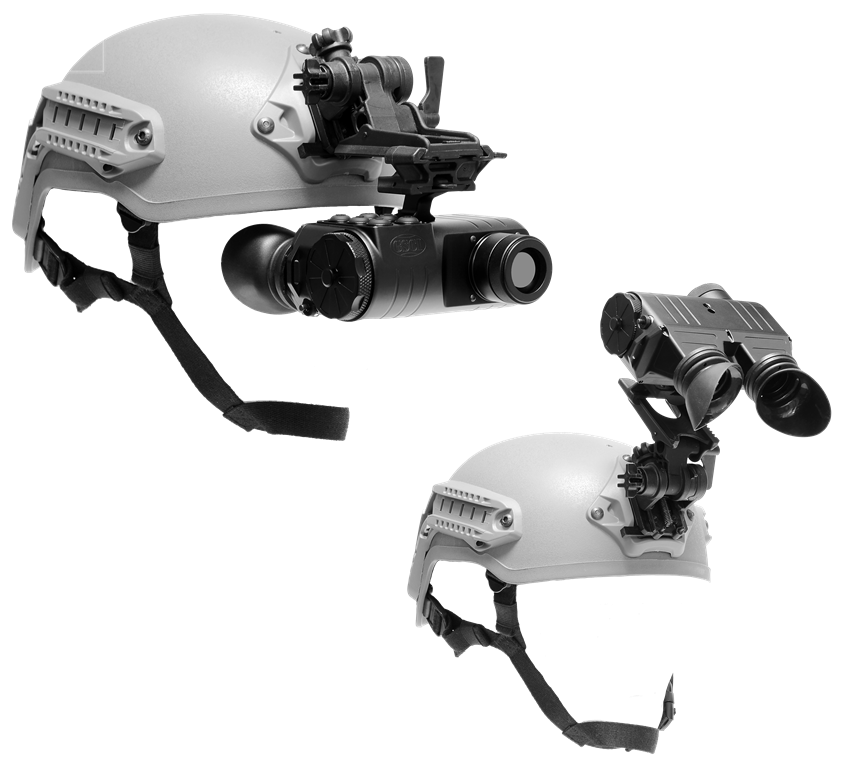

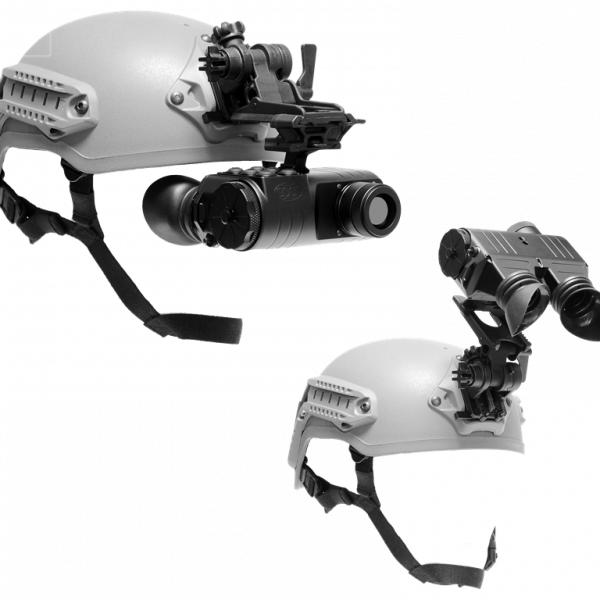

Helmet-Mountable

Integrated Stadiametric Rangefinder

24-hour Operation

Vehicle Detection Range of up to 1130 metres

Manual and Automatic FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Battery Pack Compatibility

Complete Dust– and Waterproof Protection

Remote Control

Available for Worldwide Export

7-Year Manufacturer’s Warranty

Made in Canada

Specifications

TECHNICAL SPECIFICATIONS
Objective Lens Focal Length 25mm
Objective Lens F-number f/1.0
Field Of View 24.5° x 18.5°
Magnification Optical 1X
Magnification Digital 2X and 4X
FPA Resolution and Pitch 640×480, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Sensitivity <50mK
FPA Refresh Rate 50Hz
Display Dual-AMOLED, 800×600, Colour
Imaging Modes 1 Monochrome + 8 Colour
Digital Video Recorder Yes: Built-In, 32GB microSD card included.
Power Source 4pcs Standard AA Batteries: Alkaline, Rechargeable, Lithium, etc.
Battery life Up to 8 Hours
Max. Detection, Human (1.7×0.5m) 830m
Max. Detection, Vehicle (2.3×2.3m) 1,130m
Dimensions, mm 112x138x55
Weight, grams 455
Environmental Protection IP67 or Better (Optional)
Warranty 7-Year, Limited
Export Available for Export Worldwide*
