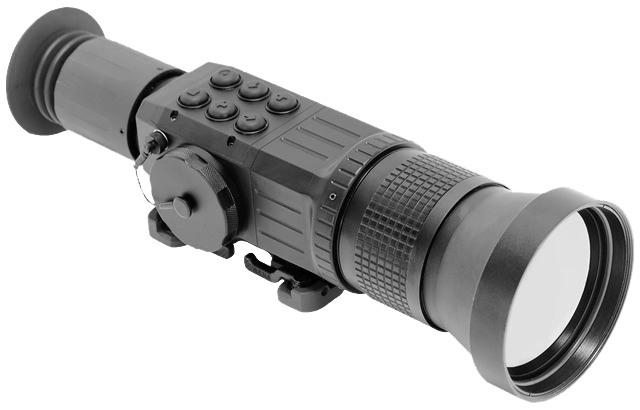

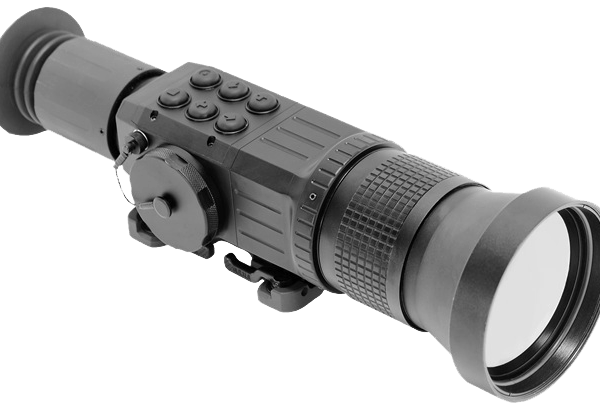

General Starlight CTS-275-64 Elite Grade Tactical Clip-On Thermal Weapon Sights

$0.00

General Starlight CTS-275-64 Elite Grade Tactical Clip-On Thermal Weapon Sights

Out of stock

Email
Category:

Description

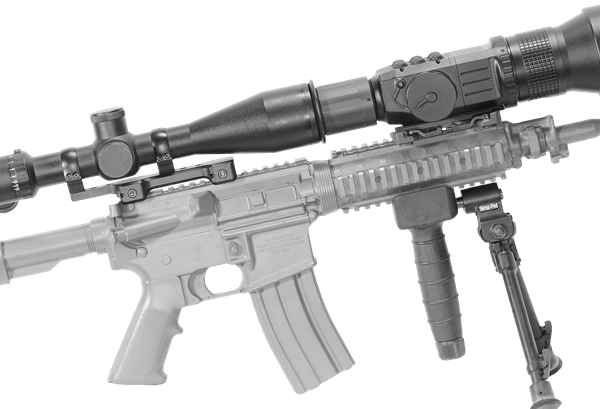

GSCI’s Clip-On Thermal Weapon Sights CTS-275-64 are designed for medium-range engagements. Utilizing the quick release weapon mount, the CTS-275-64 easily attaches to and detaches from standard 1913 Picatinny rails in front of daytime scopes. This gives the operator the ability to deploy it on multiple weapon platforms without the need to dedicate a thermal scope.

CTS-275-64 sights have built-in digital collimator which allows the easy pairing with the host day scope.



Features:

High-Resolution Uncooled FPA: 640×480

Fast Refresh Rate: 50Hz

Quality and “Fast” Germanium Lens

Built-In Video Recorder

Ultra-Low Power Consumption

Stow Safety Feature (SSF)

Precision-Machined Rugged Aluminum Body

Weapon-Mountable: Fits 1913 Rails

Video-out for External Display and Recording

Stadiametric Rangefinder

High-Res AMOLED Display 800×600

24-hour Operation

Remote Control Unit

Manual and Auto FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Power Supply Compatibility

Complete Dust– and Waterproof Protection

7-Year Manufacturer’s Warranty

Made in Canada



Specifications

TECHNICAL SPECIFICATIONS
Optical Magnification 1X
Lens Focal Length and F-Number 75mm, f/1.0
Field of View 8.3° x 6.2°
Focusing Range 2m .. Infinity
FPA Resolution and Pitch 640×480, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Sensitivity <50mK
FPA Refresh Rate 50Hz
Digital Zoom 2X and 4X
Display AMOLED, Colour, 800×600
Imaging Modes 1 Monochrome + 8 Colour
Digital Video Recorder Built-In (32 GB microSD Card Included)
Accepted Batteries 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc.
Battery Life Up to 10 Hours
Max. Detection Human (1.7×0.5m) 2,500 m
Max. Detection Vehicle (2.3×2.3m) 3,380 m
Environmental Protection IP67 or Better (Optional)
Dimensions, mm 260x100x90
Weight, grams 1200
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide *
