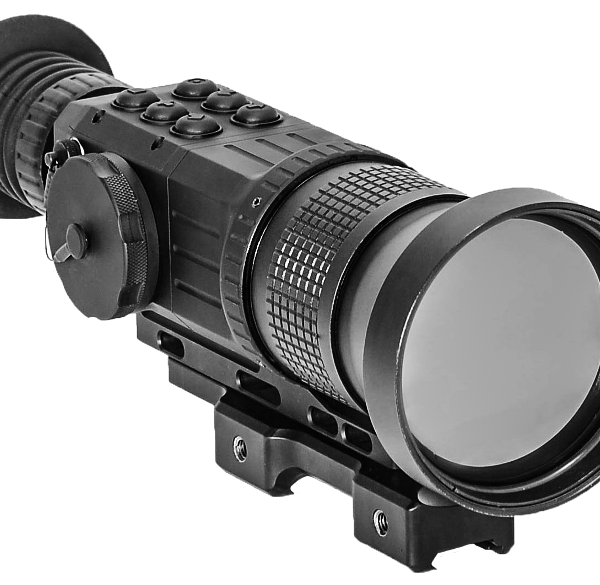

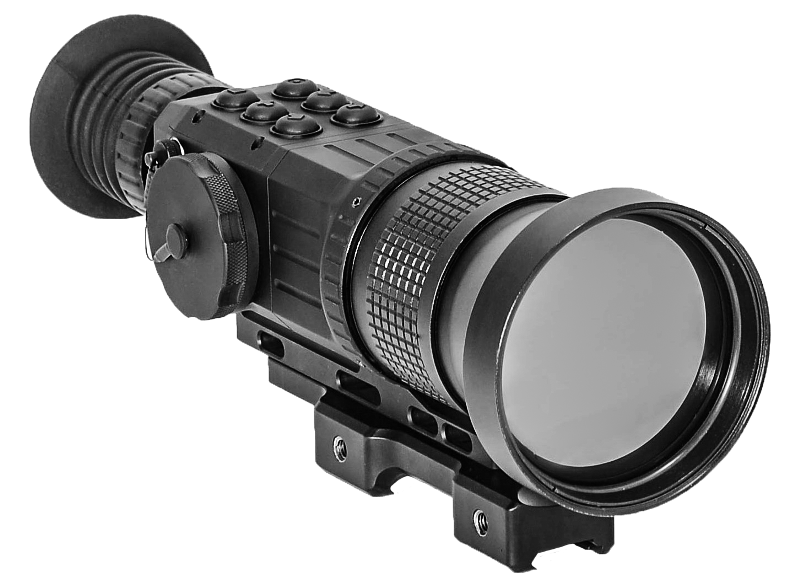

General Starlight TWS-3075-64 Elite Grade Tactical Thermal Weapon Sight

$0.00

General Starlight TWS-3075-64 Elite Grade Tactical Thermal Weapon Sight

Email
Category:

Description

TWS-3075-64 is a high-performance thermal weapon sight for medium– to long-range engagements. It boasts “fast” 75mm objective lens paired to high-sensitivity FPA and together with the GSCI proprietary image enhancement solutions deliver staggering detection figures of up to 3380 metres. TWS-3075-64 is manufactured in Canada according to strict military standards. Its body is made of hard-anodized, high-strength aircraft-grade aluminum to ensure maximum durability. Outstanding technical characteristics, numerous unique features and options make sights TWS-3075-64 a true professional choice.





Features:



High-Resolution Uncooled FPA: 640×480

Fast Refresh Rate: 50Hz

Quality and “Fast” Germanium Lens

Built-In Video Recorder

Ultra-Low Power Consumption

Stow Safety Feature (SSF)

Precision-Machined Rugged Aluminum Body

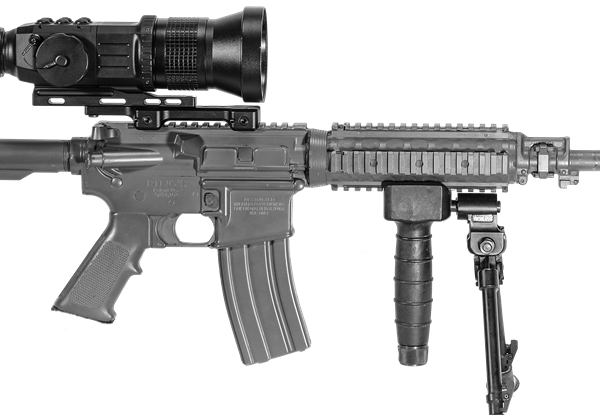

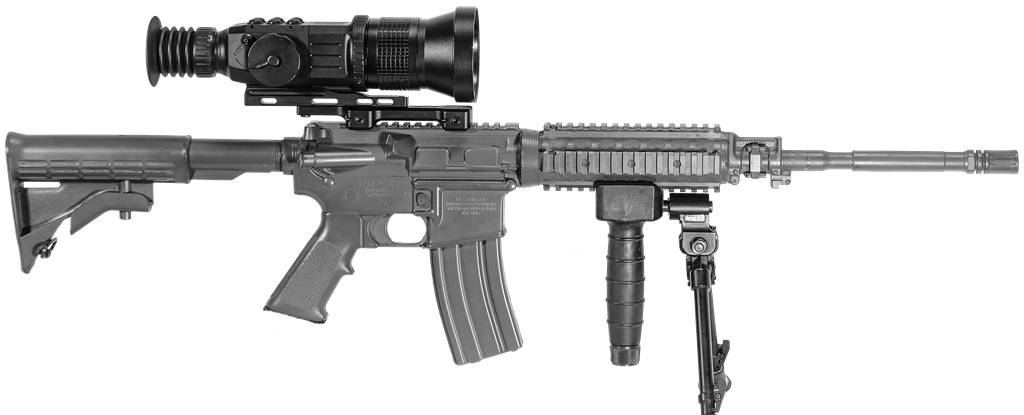

Weapon-Mountable: Fits 1913 Rails

Video-out for External Display and Recording

Stadiametric Rangefinder

High-Res AMOLED Display 800×600

24-hour Operation

Remote Control Unit

Manual and Auto FPA Sensitivity Adjustment

Manual Display Brightness Adjustment

Black Hot / White Hot Polarity Control

External Power Supply Compatibility

Complete Dust– and Waterproof Protection

7-Year Manufacturer’s Warranty

Made in Canada

Specifications

TECHNICAL SPECIFICATIONS
Optical Magnification 3X
Lens Focal Length and F-Number 75mm, f/1.0
Field of View 8.3°x6.2°
Focusing Range 2m .. Infinity
FPA Resolution and Pitch 640×480, 17µm
FPA Type Uncooled, a-Si, Shutterless, Silent,

Auto-NUC (Uninterrupted Operation)

FPA Sensitivity <50mK
FPA Refresh Rate 50Hz
Digital Zoom 2X and 4X
Display AMOLED, Colour, 800×600
Imaging Modes 1 Monochrome + 8 Colour
Digital Video Recorder Built-In (32 GB microSD Card Included)
Max. Detection Human (1.7×0.5m) 2,500 m
Max. Detection Vehicle (2.3×2.3m) 3,380 m
Accepted Batteries 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc.
Battery Life Up to 10 Hours
Environmental Protection IP67 or Better (Optional)
Dimensions, mm 240x90x90
Weight, grams 1050
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide *
