Back to S-Tac Series

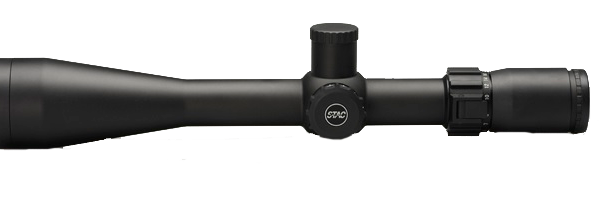

Sightron S-TAC 4-20X50 MOA 2 Reticle – 26015

$850.00

Email
SKU: 793139260154 Category: Tags: , , , ,

Description

test_eyebella
Fast Focus Eyebell

Allows for quick and easy adjustments when in the field.

S-TAC Target TurretTarget Turret

Precision adjustable target turret in 1/4 MOA adjustments. All models are resettable to zero and are protected by rugged windage and elevation caps.

Zoom ring Lever
Zoom Ring Lever

A pop up style zoom ring lever for ease of use in cold weather climates.


warranty
Lifetime Warranty

We are so confident in the quality of our products that Sightron offers a Lifetime Warranty.

exactrack
ExacTrack

This scope features Sightron’s unique ExacTrack windage and elevation adjustment system. No other system on the market comes close to the precision and performance of ExacTrack.

Zact-7 Revcoat
Zact-7 Revcoat® Multi-Coating

Sightron’s Zact-7 Revcoat® employs revolutionary lens coating technology featuring fully multi-coated precision ground glass.

Waterproof
Waterproof

Rain, snow or humidity, Sightron optics are built using 100% sealed system ensuring a lifetime of performance in the most extreme environmental conditions.

Shockproofb
Shockproof

Rated for recoil and impact from even the toughest loads.

Nitrogen Gas ChargedA
Nitrogen Gas Charged

Nitrogen filled to provide a lifetime of use from fogging and internal water buildup.

Specifications

Item Number: 26015
Sku Number: 793139-260154
Model Name: S-TAC4-20X50MOA
Magnification: 4-20X
Object Diameter (mm): 50
Fov (ft@100 Yds.): 23.6-4.4
Eye Relief (in.): 3.7-4.0
Reticle Type: MOA-2
Click Value (@100 Yds.): 1/4 MOA
Minutes Per Revolution: 15 MOA
W/E Travel (@100 Yds.): 40/80 MOA
Knob Style: Target (Resettable)
Focus Type: Side Focus
Parallax Range: 9yds to Infinity
Finish: Matte Black
Waterproof: Yes
Fully Multi Coated: Yes (Zact-7 TM 7-Layer)
Weight (oz.): 23.8
Length (in.): 14.8
Tube Diameter: 30mm
Sunshade Included: No
Illuminated Reticle: No

Reticle Dimensions
* all measurements in MOA @ 100 Yards

Click the Reticle for the S-TAC4-20X50 MOA-2 Instruction Sheet

Min Power

Max Power

A 100
B 100
C 50
D .5
E 10
F 20
G 10
H 1.25
MOA-2_wDims
A 20
B 20
C 10
D .1
E 2
F 4
G 2
H .25



Scope Dimensions
* all measurements in inches (IN)

Click the Riflescope for the Instruction Manual

ScopeDimsDwgLg

A: 14.8
B: 6.3
C: 2.9
D: 1.9
E: 3.6
F: 4.7
G: 2.3
H: 1.7
I: 30mm
