Description
![test_eyebella](https://sightronusa.com/wp-content/uploads/2016/07/test_eyebella.jpg)
Fast Focus Eyebell
Allows for quick and easy adjustments when in the field.
![SIFAT](https://sightronusa.com/wp-content/uploads/2016/07/SIFAT.jpg)
Low Profile Hunting Turret
Round Knurled dials with positive audible clicks for quick and easy adjustments in the field. Windage and elevation caps are standard on all hunting models.
![warranty](https://sightronusa.com/wp-content/uploads/2016/07/warranty.jpg)
Lifetime Warranty
We are so confident in the quality of our products that Sightron offers a Lifetime Warranty.
![Fully Multi-CoatedFM](https://sightronusa.com/wp-content/uploads/2016/07/Fully-Multi-CoatedFM.jpg)
Fully Multi-Coated
Fully multi-coated lenses employ coatings on both surfaces of our precision ground glass to provide the maximum optical quality and light transmission.
![Waterproof](https://sightronusa.com/wp-content/uploads/2016/07/Waterproof-150x150.jpg)
Waterproof
Rain, snow or humidity, Sightron optics are built using 100% sealed system ensuring a lifetime of performance in the most extreme environmental conditions.
![Shockproofb](https://sightronusa.com/wp-content/uploads/2016/07/Shockproofb-150x150.jpg)
Shockproof
Rated for recoil and impact from even the toughest loads.
![Nitrogen Gas ChargedA](https://sightronusa.com/wp-content/uploads/2016/07/Nitrogen-Gas-ChargedA-150x150.jpg)
Nitrogen Gas Charged
Nitrogen filled to provide a lifetime of use from fogging and internal water buildup.
Specifications
Item Number: |
31000 |
Sku Number: |
793139-310002 |
Model Name: |
SIH1.754X32 |
Magnification: |
1.75-4X |
Object Diameter (mm): |
32 |
Fov (ft@100 Yds.): |
63.7-27.3 |
Eye Relief (in.): |
3.0-3.2 |
Reticle Type: |
Duplex |
Click Value (@100 Yds.): |
1/4 MOA |
Minutes Per Revolution: |
18 MOA |
W/E Travel (@100 Yds.): |
125 MOA |
Knob Style: |
Hunting |
Focus Type: |
N/A |
Parallax Range: |
Fixed at 100yds |
Finish: |
Matte Black |
Waterproof: |
Yes |
Fully Multi Coated: |
Yes |
Weight (oz.): |
13.4 |
Length (in.): |
10.62 |
Tube Diameter: |
1 Inch |
Sunshade Included: |
No |
Lens Cover Included: |
Yes |
Illuminated Reticle: |
No |

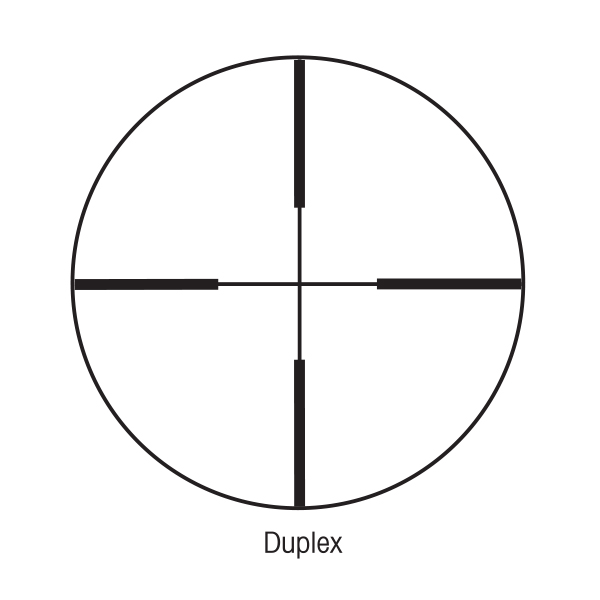

Reticle Dimensions
* all measurements in inches (IN).
Scope Dimensions
* all measurements in inches (IN)
Click here for the RIFLESCOPE MANUAL
![ScopeDimsDwgLg](https://sightronusa.com/wp-content/uploads/2016/07/ScopeDimsDwgLg-1.jpg)
|
A: |
10.62 |
B: |
5.37 |
C: |
2.00 |
D: |
2.18 |
E: |
3.12 |
F: |
2.00 |
G: |
1.50 |
H: |
1.68 |
I: |
1.00 |
|
