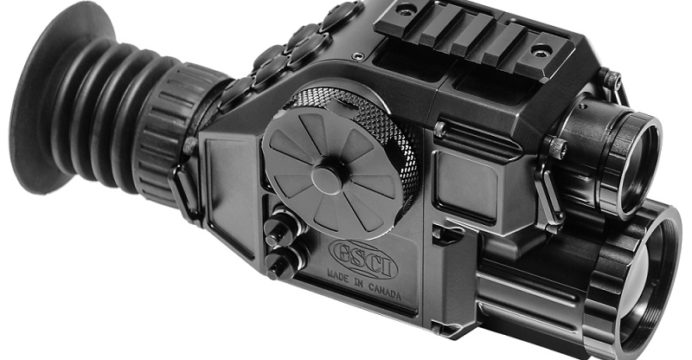

General Starlight Compact Fusion Thermal Sight QUADRO-S

$0.00

General Starlight Compact Fusion Thermal Sight QUADRO-S

Email
Category:

Description

QUADRO-S is the augmented vision weapon-mountable system for tactical surveillance, observation and engagement at short- and medium-range distances.

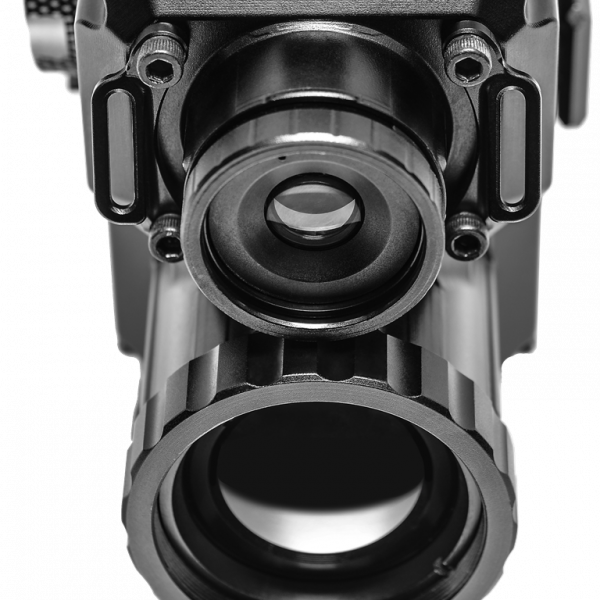

Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness.

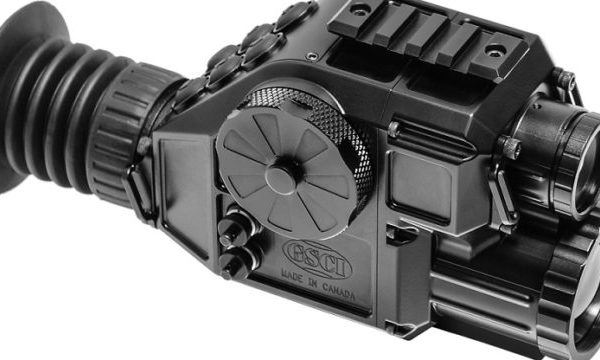

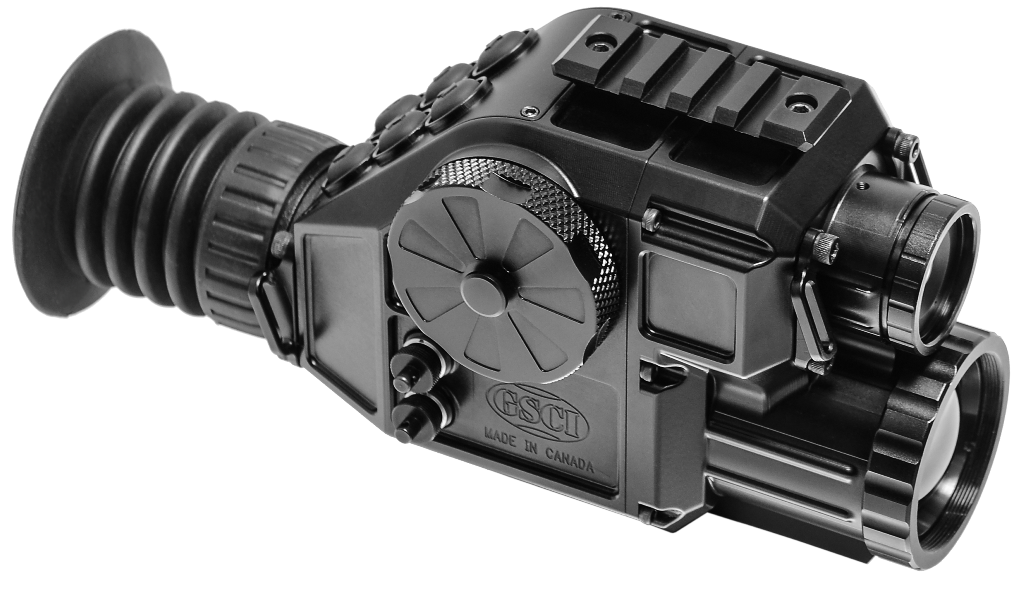

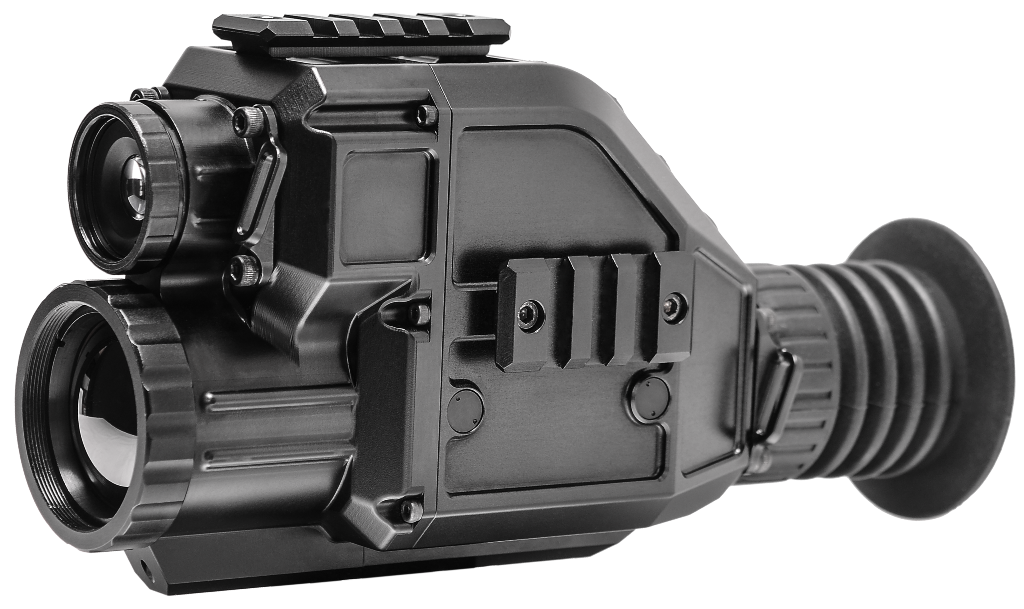

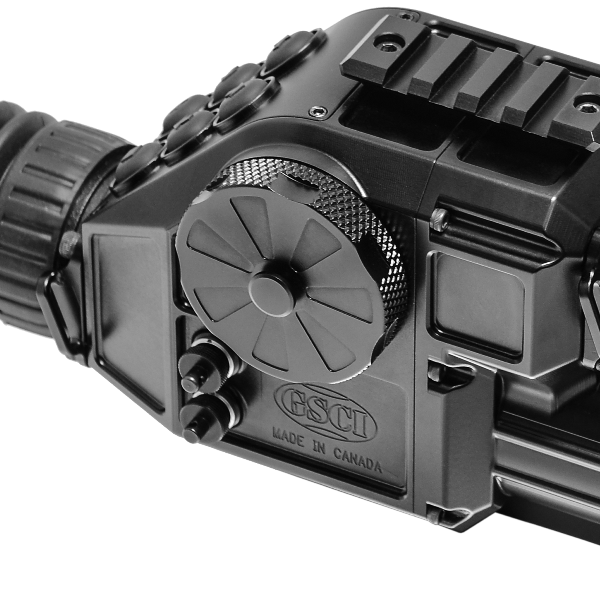

The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance. The side and top weaver rails allow the user to attach additional equipment such as a reflex sight, laser rangefinder, IR illuminator, and more.

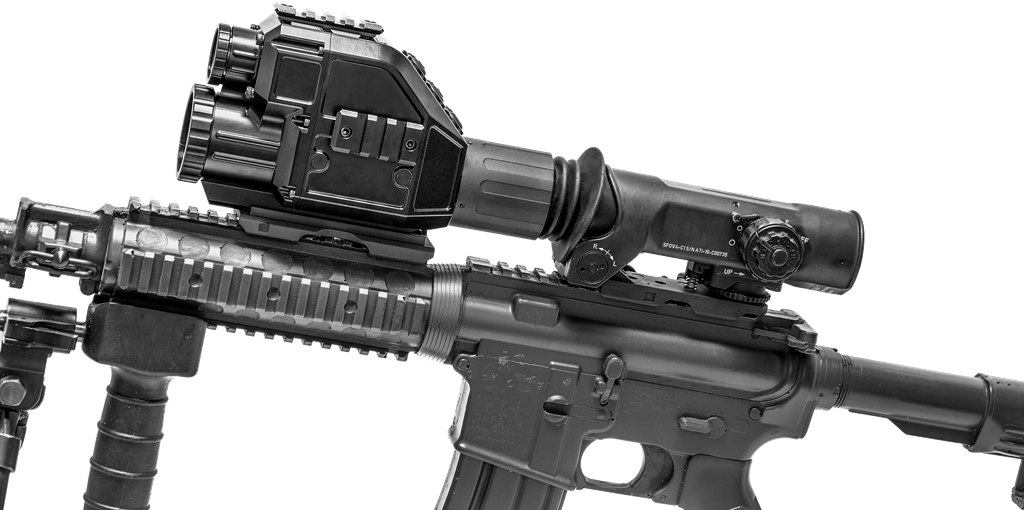

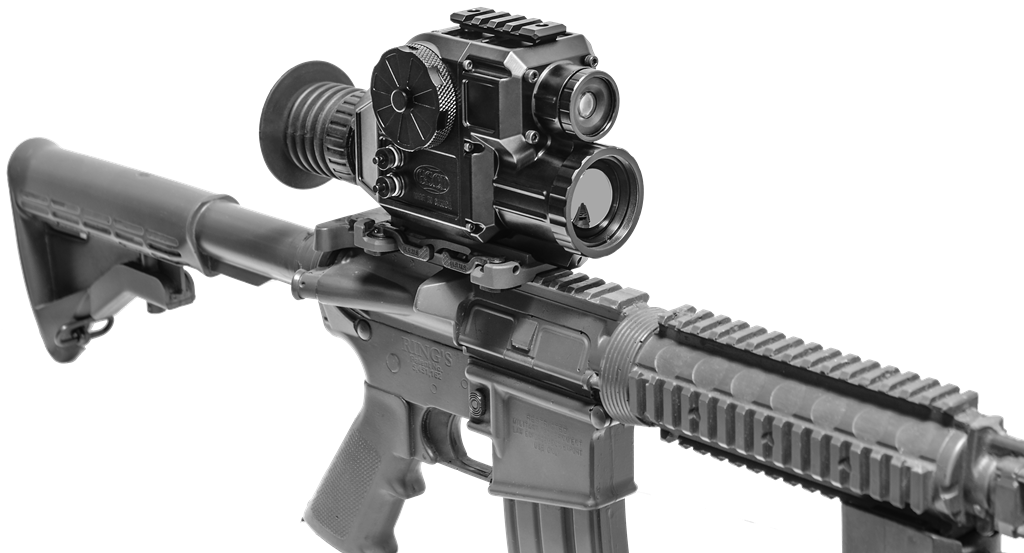

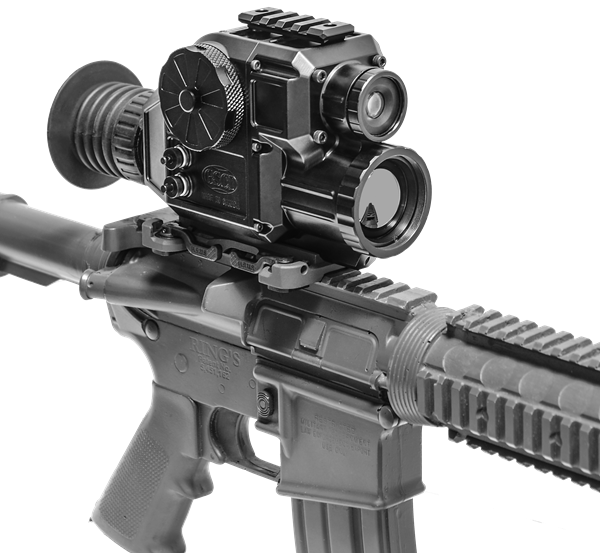

QUADRO-S is fully compatible with various weapon mounting systems and can also be used as a hand-held or tripod mounted observation device.



FACTS AND NUMBERS

> 100% Target Detection Capability

> Multi-Mode, 24/7 Observation

> Plug-And-Play System with wide FOV

> 640×480 FPA with 50Hz Refresh Rate

> Auto-NUC Technology: No Calibration Needed

> 35mm f/1.0 High-Speed Objective Lens

> Universal Power Solution





Evolution Continues.



The QUADRO-S is the augmented vision weapon-mountable system for tactical surveillance, observation and engagement at short- and medium-range distances. It is the next big step in the evolution of advanced detection systems.

Overview

Four Modes. Unlimited Advantages.

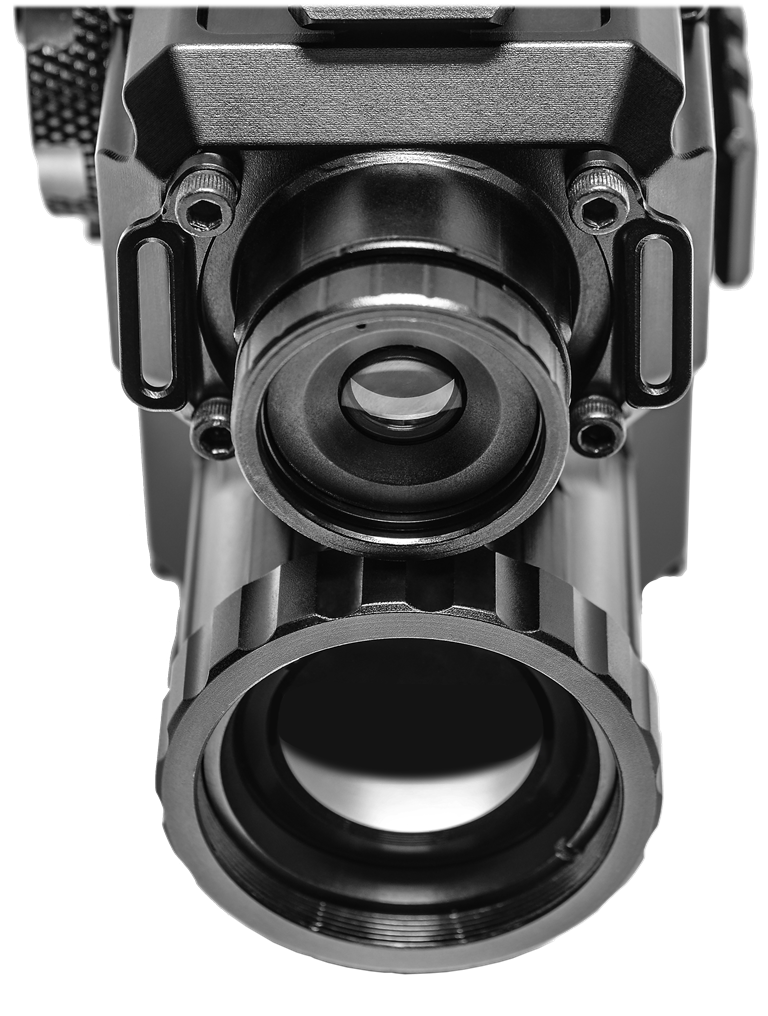

Thanks to GSCI’s patented multi-sensor technology, the QUADRO-S operates in 4 distinct modes: Thermal, Daytime, Nighttime and a day/night Hybrid view, also known as the Fusion mode. On top of that, the QUADRO-S comes loaded with many unique features that offer convenience and help give the operator a tactical advantage.



QUADRO-S

Optical Magnification

1.4X

Objective Lens System

35mm Focal Length, f/1.0

Field-Of-View (FOV)

17.3°x13.3°

FPA Resolution

640×480

FPA Type

Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

FPA Sensitivity

<60mK

FPA Refresh Rate

50Hz

Digital Zoom

2X and 4X

Display

AMOLED, 800×600, Colour

Imaging Modes

1 Monochrome and 8 Pseudo-Colour

Electronic Reticle

8+8 Patterns

User-Configurable Profiles

8 Profiles: to store reticle calibration, SRF, SSF and other settings

Digital Video Recorder

Built-In or External (Optional)

QUADRO-S Brochure

VNIR Sensor Type

VNIR Sensor Resolution

VNIR Sensor Sensitivity

1/3” CCD

800×600

Up to 0.1 Lux

VNIR Modes

Day/Night

Image Fusion

Real-Time, Electronic

Fused Channels

VNIR + LWIR

Heat Signature Opacity Range

0% .. 100%

Power Source

4 AA Batteries

Battery Life

Up to 7 hours on AA

Accepted Power Sources

5V USB Power Banks, External Power Supply (6V .. 15V)

Environmental Protection

IP66 or Better (Optional)

Dimensions, mm

170x91x70

Weight, grams

750

Operating Temperature

-40°C .. +50°C

Warranty

7 Years, Limited

Specifications

QUADRO-S TECHNICAL DATA
SYSTEM FOV 17.3°x13.3°
Optical Zoom 1.4X
Reticles 8+8
SSF Included
THERMAL CHANNEL (LWIR) FPA Type a-Si Microbolometer, Uncooled,             Shutterless, Auto-NUC
FPA Spectral Range 7µm .. 14µm
FPA Sensitivity <60mK
FPA Gain Manual/Automatic
FPA Resolution 640×480, 17µm pitch
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X
Objective Lens 35mm, f/1.0
Polarity Control Black Hot / White Hot
Imaging Modes 1 Monochrome and 8 Pseudo-Colours
DAY/NIGHT CHANNEL (VNIR) Sensor Type CCD
Sensor Size 1/3”
Resolution 800×600
Sensitivity Up to 0.1Lux
VNIR Modes Day/Night
EYEPIECE Style Single
Diopter Adjustment -6 .. +4







QUADRO-S TECHNICAL DATA (Contunied)
DISPLAY Display Type Colour AMOLED, 800×600
Display Brightness Control,

Contrast

Manual, >10000:1
IMAGE FUSION Type Real-time, Electronic
Fused Channels LWIR + VNIR
Parallax Compensation Electronic, Adjustable
Heat Signature Opacity Range User Adjustable: 0% .. 100%
ELECTRONICS, MECHANICAL AND ENVIRONMENTAL Power Supply AA Batteries and/or various External                 Power Sources
Quick Swap Battery Packs Each holds 4xAA (Lithium)
External Power Source  6 .. 15V
Autonomy on Batteries Up to 7 hours
Video Output CVBS 1Vpp @ 75 Ohm
Operating Temperature -40°C .. +50°C
Storage Temperature -50°C .. +60°C
Dimensions 170x91x70mm
Weight w/o mount 750 grams
Environmental Protection IP66 or Better (Optional)
Mounting Type (optional) Low Profile/Picatinny/BLASER
Digital Video Recorder (Optional) Built-in or external



What’s in the box?

Each QUADRO-S System is supplied with a hard case, soft carrying pouch, hand strap + 2 lanyards, video out cable, power USB cable, 2 quick swap battery packs, 4 AA Lithium type batteries, objective lens cap, long rubber eyecup, short rubber eyecup, demist shield, user’s manual, 7 years of Manufacturer’s warranty.
